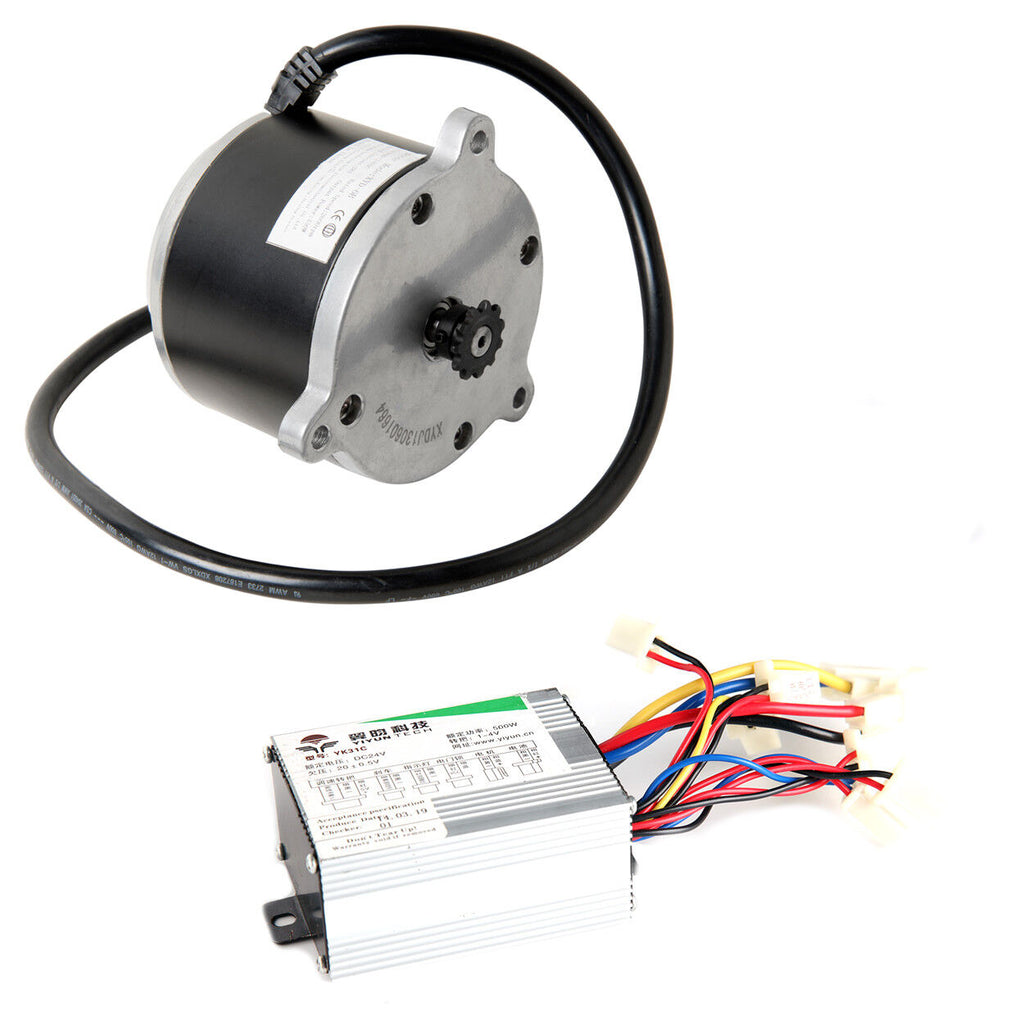

Electric DC Motor Scooter Currie 500W XYD-6B+Speed Controller IZIP eZIP Schwinn

Code: Mot-Currie-XYD-6B-500-24-SP+SC

US SELLER > FAST SHIPPING
500W 24V DC MOTOR XYD-6B Currie Technologies
+
Speed Controller


For 500W max. Series Schwinn & IZIP electric scooters (chain drive)



Brand new with warranty.

- Motor for electric scooter can be used for mini bike quad and Go-Kart. It may also work for bicycle. Or do it yourself enthusiasts.
- 24 Volt 450 rated, 500 Watt max motor from Currie Technologies.
- OEM motor on 500 Series Schwinn & IZIP electric scooters (chain drive).
- Standard three hole mounting face plate used by most high powered Currie Technologies scooters.
- Center to center mounting hole distances approximately 3-7/8".
- This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires.

Currie Technologies part number: SD-156


Motor Specs:
Model: XYD-6B Motor
Type: Brush
Voltage: 24 Volt DC
Rated Speed: 2600 Rpm
Rated Current: 28 Amp
Sprocket: #25 Chain 11 Tooth
Output: 500 Watts Max
Rotation: Reversible
Sprocket: Removable Set-Screw Sprocket

Dimensions:
Case Length: 3-7/8" (98 mm)
Case Diameter: 3-15/16" (100 mm)
Drive Shaft Length: 1/2" (13 mm)
Drive Shaft Diameter: 3/8" (10 mm)
Mounting Hole Distance: 3-15/16" (100 mm)

Compatibility:

This motor should work with Schwin and IZIP 500 series electric scooters. Or any other scooter, mini bike or go-kart using 450W or 500W motors that looks similar to this one. Should also work with any other brand with similar specs in motor.... Please check connector type and motor size and specs. before buying as replacement.

Please ask us if you need to know any specific dimensions for this motor so you can be sure it will work for you.
