US SELLER/FAST SHIPPING

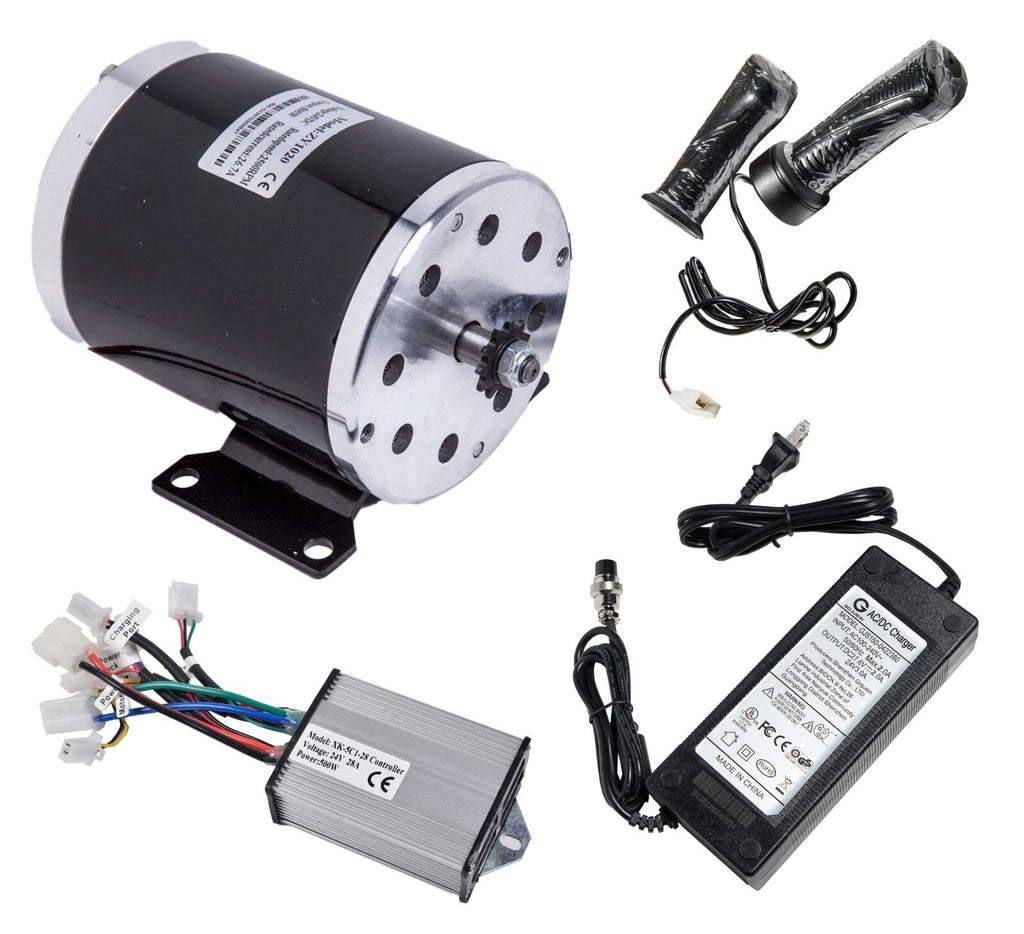

500W 24V DC MOTOR with Mounting Base
+
500W SPEED CONTROLLER
+
Throttle (compatible with the speed controller)
+
24V Charger (compatible with the speed controller)



For electric scooter, mini bike quad and Go-Kart. It may also work for bicycle
Unlike other motors that are sold based on the input power, Unite MY1020 motors are rated on real output power.
Make sure to pair it with batteries and controllers capable of handling the amperage

Specs:
- 24V DC
- Rated 500 Watt, 27.4 amps
- 2500 RPM at rated load
- Max 3000 RPM (unloaded)
- Chain drive (11 teeth sprocket) #25 chain 1/4" pitch
- Type of motor: DC, Brush
- Reversible (motor can spin in either direction)
- 12 gauge leads
- Permanent Magnet

Dimensions: See pictures

This motor should work with some Xtreme or Razor electric scooter, mini bike or go-kart using a 500W motor. Should also work with any other brand with similar specs in motor
Please check connector type and motor size and specs. before buying as replacement.

Please ask us if you need to know any specific dimensions for this motor so you can be sure it will work for you.

Most orders ship same day from our warehouse

Warranty: 6 months from purchase date. We will only replace motors that do not work out of the box.  We test all motors before shipping. We will not replace burnt out motors.

___________________________________________________________________________________________________________________

Control box (speed controller) specs:

Dimension: aprox 4.5" x 3" x 2"
Weight: 14 OZ
Brand: XYD
Model: XK-5C1-28
Max Power: 670W

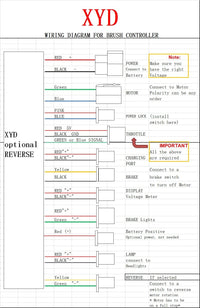

This speed controller features functions and connection terminals for:
Required:
- Battery: Connect to 24 volts (will not work with less than 24V)
- Motor: Use with Brushed Motor
- Throttle (use with compatible variable speed controller). Always match red and black cables.
- Power Lock / on-off switch (use with a simple switch to turn on the controller)

Optional functions:
- 2 Brake ports (will shut off motor)  - Use with micro switch fitter to brake handle or pedal
- Battery Voltage Display - Use with voltage indicator
- Headlight
- Charger - Verify polarity before connecting


___________________________________________________________________________________________________________________
Charger Specs:

Features:
- UL  62368-1 certified
- 24V rating (it actually produces 27V)
- 2 amp charging
- Will change LED color once change is finished
- 2 Amps rating
