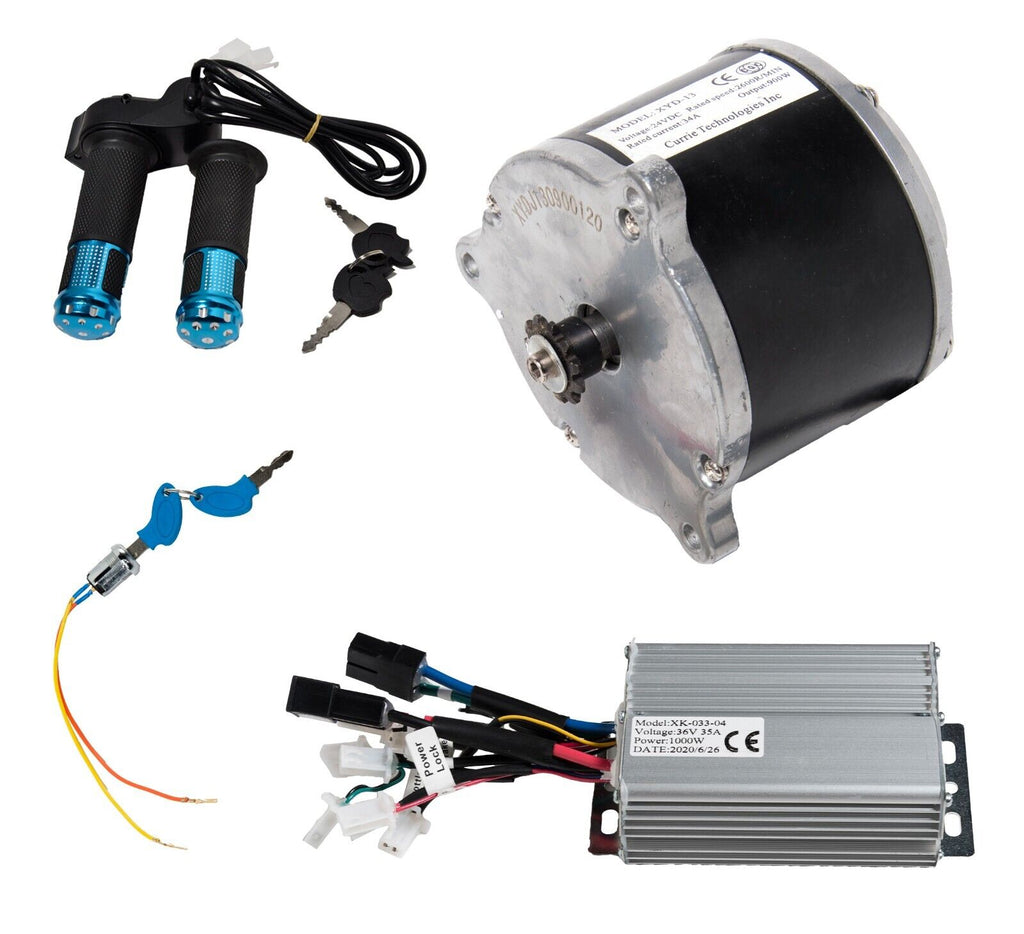

Electric Scooter Kart Motor Overvolt Kit Currie Face 36V 900W Controller Throttl
-
UP TO 1 BUSINESS DAY DELIVERY
-
TOP RATED SELLER IN EBAY
-
1 YEAR WARRANTY ON SELECT PRODUCTS
Currie Technologies part number: XYDJ130900120
Type: Brush
Voltage: 24 volt DC
Rated Speed: 2600 RPM
Rated Current: 34 amp
Case Diameter: 3-15/16" (100 mm)
Drive Shaft Length: 1/2" (13 mm)
Drive Shaft Diameter: 3/8" (10 mm)
Mounting Hole Distance: 3-15/16" (100 mm)
Universal switch. Will cut or let electric charge pass
Specifications:
- Brand new
- Electric Bike scooter on / off switch (to be used with speed controllers)
- Compatible with 24v/36v/48v E-scooters (using 2 wires on the speed controller's 'lock').
- Cable length is approximately 4 inches
___________________________________________________________________________________________________________________________________________________________________________________
Throttle, Variable Speed, Digital Voltage
Indicator with Lock
Specification:
Brand new and high quality
Material: Rubber, Aluminum
Size: Approx. 115 x 33mm
Cable Length: about 1m
Yellow wire: power +（24v 36v 48v ）
red wire: +5v
green wire: signal
black wire: -
blue wire, white wire: I/O button（such as on/ off function, light，horn）
Fit for 22.2mm diameter Handlebar
Suitable for 24/36/48/60/72V E-bike
Package included:
2 x EBike Throttle Grip With Wire
2 x Keys
Note:
Please do not contact wrong wire
Please allow 1-3mm errors due to manual measurement
Throttle |
Controller |
Description |
|
Red |
connects to |
Red |
Voltage 5 to 0 Volts |
Black |
connects to |
Black or Yellow |
Ground |
White |
connects to |
Green, Blue or White |
Speed Adjusting Signal (0 to 5 Volts) |
Green |
connects to |
Red |
Controller's Lock or Anti-theft cable |
Yellow |
connects to |
Black or Orange |
Controller's Lock or Anti-theft cable |
