Electric Motor Kit Cart Over Volt 500 Watt 36V Currie XYD-6B2 + Controller Ind

Code: Mot-500-24-XYD-6B2-11T-25+Cont-800-36-JC-thr-Ind

Add Your Review

Electric Motor Kit Cart Over Volt 500 Watt 36V Currie XYD-6B2 + Controller Ind

$214.91

In Stock

Quantity

Category: Accessories - Batteries, Scooter, eBike, eATV Go-Kart, Scooter, eBike, eATV Go-Kart - Controllers

UP TO 1 BUSINESS DAY DELIVERY
TOP RATED SELLER IN EBAY
1 YEAR WARRANTY ON SELECT PRODUCTS

Description
Shipping & Returns

Motor Model: XYD-6B2

Color: Multi-Color

Wattage: 500

Bottom Base: Y

MPN: XYD-6B2DC BrushBYW500V48S25G=NCDC BrushRNCTKYBC

Suitable For: Electric Scooter

Gear: N

Brand: Currie

Controller type (if included): DC Brush

Sprocket type: 25

Type: DC Brush Motor

Voltage: 48

Model: XYD-6B2DC BrushBYW500V48S25G=NCDC BrushRNCTKYBC

Controller with Reverse: N

KEyLock included?: Y

Country of Origin: China

US SELLER/FAST SHIPPING

BRAND NEW WITH WARRANTY

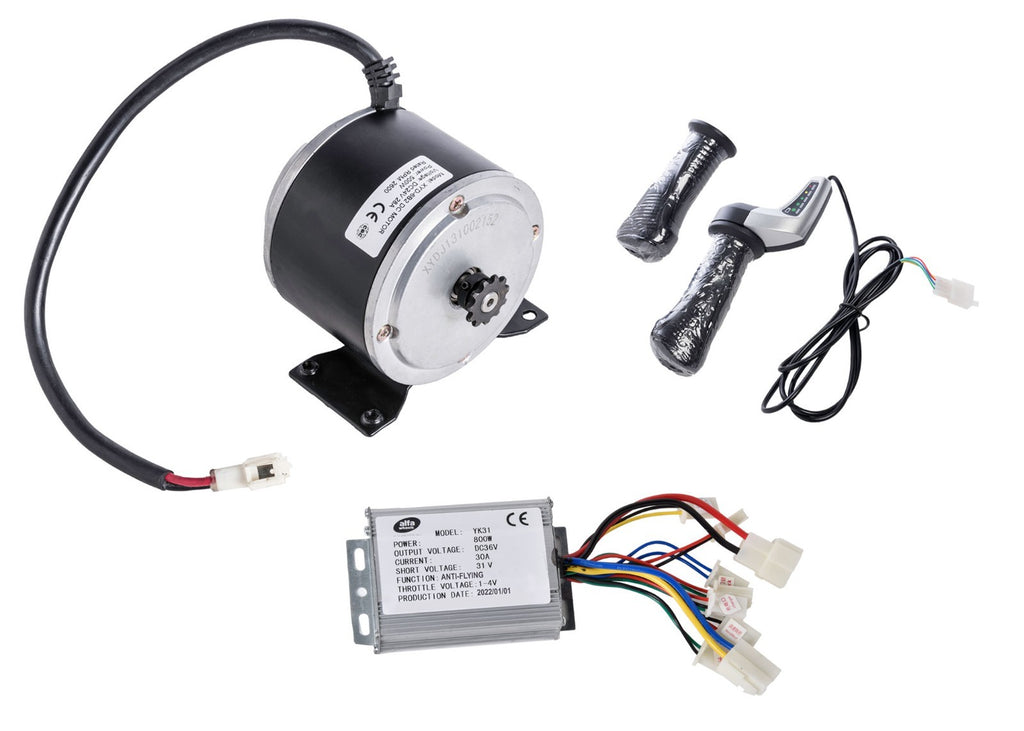

Kit of One (1) 500W 24V DC MOTOR WITH BASE XYD-6B2 Currie Technologies

For 450 Series Schwinn & IZIP electric scooters (chain drive) For Crazy Cart Upgrade

One (1) 800W 36V Speed Controller

One (1) Throttle with Indicator

NOTE: For this to work, you need to upgrade to 36 Volts battery system

(Warranty is for out of the box) Overvolting any motor may result in early failure, bit lots of fun!

- Motor for electric scooter can be used for mini bike quad and Go-Kart. It may also work for bicycle. Or do it yourself enthusiasts.

- 24 Volt 500 Watt motor from Currie Technologies.

- OEM motor on 450 Series Schwinn & IZIP electric scooters (chain drive).

- Standard three hole mounting face plate used by most high powered Currie Technologies scooters.

- This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires.

Please ask us if you need to know any specific dimensions for this motor so you can be sure it will work for you.

Currie Technologies part number: MT-24450-001 or XYDJ131002152

Motor Specifications:

Model: XYD-13 Motor
Type: Brush
Voltage: 24 volt DC
Rated Speed: 2600 RPM
Rated Current: 34 amp

Max Current: 48 amp

Rotation: Reversible

Sprocket: 11 tooth #25 chain sprocket

Max Output: 900 Watts

Dimensions:

Case Length: 3-3/4" (95 mm)
Case Diameter: 3-15/16" (100 mm)
Drive Shaft Length: 1/2" (13 mm)
Drive Shaft Diameter: 3/8" (10 mm)
Mounting Hole Distance: 3-15/16" (100 mm)

Compatibility:

eZip E-450
Razor Crazy Cart XL

___________________________________________________________________________________________________________________

Controller Specs:

For Brush Motor SPEED CONTROLLER for DC Motor, up to 800W, 36 Volts . This can be used for any other wattage lower than 800W, as 750W, 600W or 500W scooters, e-bike, e-ATV.

This controller may be used for replacement of most Razor, X-treme and other kinds of electric scooters, E-bikes, or E-ATVs. Check that voltage is compatible, motor is of same or less watts and for similarity in size, shape and color.

Dimension: aprox 3.5" x 2.5" x 1.5"

Weight: 10 OZ

Brand: JC

Model: YK31

- Rated Power: 800W

- Peak Current: 32 amps

- Max Voltage: 40.5V

- Cut Off Voltage: 32V

This SPEED CONTROLLER features connection terminals for:

- Battery

- Motor

- Charger

- Lock / on-off switch

- Brake (will shut off motor)

- Battery charge indicator

- Tail lamp

- Throttle

____________________________________________________________________________________________________________________________________________________________________________________________

Throttle with Indicator:

INCLUDED: 1 Throttle with indicator and 1 extra grip

Universal Black Electric Scooter Bike Throttle Grip 5 Wire

Specifications:

- Brand new

- Electric Bike scooter twist throttle accelerator

- Compatible with 48V E-scooters (using 5 wires on the speed controller).

- Fits standard 7/8 inches (22.2mm) handle bars

- Cable length is approximately 40 inches

- Includes 4 parts: Throttle, 1 extra grips

- Wiring instructions:

Throttle		Controller	Description
Red	connects to	Red	Voltage 5 to 0 Volts
Black	connects to	Black or Yellow	Ground
White	connects to	Green, Blue or White	Speed Adjusting Signal (0 to 5 Volts)
Green	connects to	Red	Controller's Lock or Anti-theft cable
Yellow	connects to	Black or Orange	Controller's Lock or Anti-theft cable

___________________________________________________________________________________________________________________

We also sell other electric scooter parts and mini Bikes

Most orders ship same day from our warehouse

Warranty: 3 months from purchase date (Due to Over Voltage). We will only replace motors that do not work out of the box. We test all motors before shipping. We will not replace burnt out motors.
