500W 24V Electric scooter Motor Currie Technologies XYD-6B SD-156 XYDJ130601664 500W 24V Electric scooter Motor Currie Technologies XYD-6B SD-156 XYDJ130601664 Currie US SELLER > FAST SHIPPING 500W 24V DC MOTOR XYD-6B Currie Technologies For 500 Series Schwinn & IZIP electric scooters (chain drive) Brand new with warranty. - Motor for electric scooter can be used for mini bike quad and Go-Kart. It may also work for bicycle. Or do it yourself enthusiasts. - 24 Volt 500 Watt motor from Currie Technologies.  - OEM motor on 500 Series Schwinn & IZIP electric scooters (chain drive). - Standard three hole mounting face plate used by most high powered Currie Technologies scooters.  - Center to center mounting hole distances approximately 3-7/8". - This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires.Currie Technologies part number: SD-156 Motor Specs: Model: XYD-6B MotorType: BrushVoltage: 24 Volt DCRated Speed: 2600 RpmRated Current: 28 AmpSprocket: #25 Chain 11 ToothOutput: 500 WattsRotation: ReversibleSprocket: Removable Set-Screw Sprocket Dimensions: Case Length: 3-7/8" (98 mm)Case Diameter: 3-15/16" (100 mm)Drive Shaft Length: 1/2" (13 mm)Drive Shaft Diameter: 3/8" (10 mm)Mounting Hole Distance: 3-15/16" (100 mm) Compatibility: eZip E-500 GT-500 IZIP I-500 Mongoose M500 Schwinn S500 This motor should work with Schwin and IZIP 500 series electric scooters. Or any other scooter, mini bike or go-kart using 450W or 500W motors that looks similar to this one. Should also work with any other brand with similar specs in motor.... Please check connector type and motor size and specs. before buying as replacement. Please ask us if you need to know any specific dimensions for this motor so you can be sure it will work for you. ___________________________________________________________________________________________________________________ We also sell other electric scooter parts and mini Bikes  Most orders ship same day from our warehouse  Warranty: 12 months from purchase date. We will only replace motors that do not work out of the box.  We test all motors before shipping. We will not replace burnt out motors.

500W 24V Electric scooter Motor Currie Technologies XYD-6B SD-156 XYDJ130601664

Code: Motor-Currie-XYD-6B-500-24-FBA-LBL
  • UP TO 1 BUSINESS DAY DELIVERY

  • TOP RATED SELLER IN EBAY

  • 1 YEAR WARRANTY ON SELECT PRODUCTS

US SELLER > FAST SHIPPING

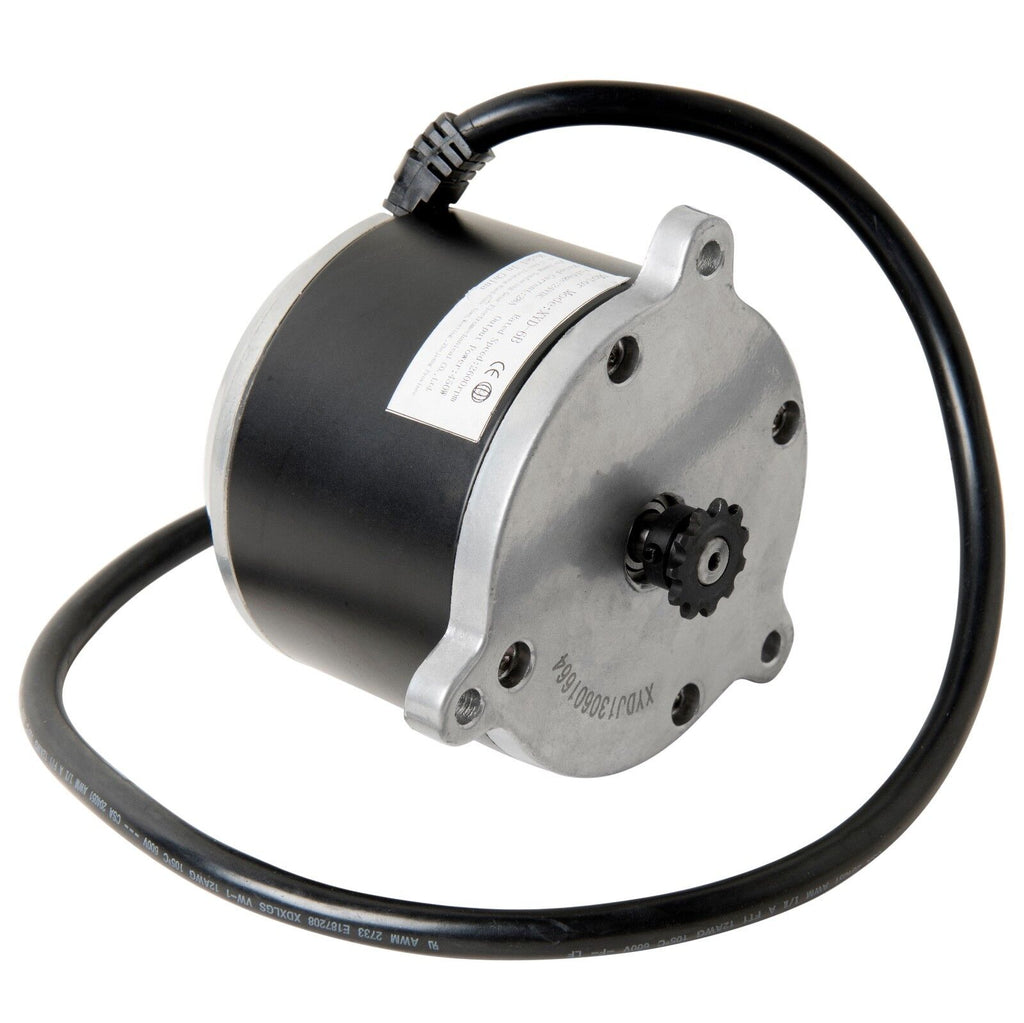

500W 24V DC MOTOR XYD-6B Currie Technologies
For 500 Series Schwinn & IZIP electric scooters (chain drive)


Brand new with warranty.

- Motor for electric scooter can be used for mini bike quad and Go-Kart. It may also work for bicycle. Or do it yourself enthusiasts.
- 24 Volt 500 Watt motor from Currie Technologies.
- OEM motor on 500 Series Schwinn & IZIP electric scooters (chain drive).
- Standard three hole mounting face plate used by most high powered Currie Technologies scooters.
- Center to center mounting hole distances approximately 3-7/8".
- This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires.

Currie Technologies part number: SD-156


Motor Specs:
Model: XYD-6B Motor
Type: Brush
Voltage: 24 Volt DC
Rated Speed: 2600 Rpm
Rated Current: 28 Amp
Sprocket: #25 Chain 11 Tooth
Output: 500 Watts
Rotation: Reversible
Sprocket: Removable Set-Screw Sprocket

Dimensions:
Case Length: 3-7/8" (98 mm)
Case Diameter: 3-15/16" (100 mm)
Drive Shaft Length: 1/2" (13 mm)
Drive Shaft Diameter: 3/8" (10 mm)
Mounting Hole Distance: 3-15/16" (100 mm)

Compatibility:

This motor should work with Schwin and IZIP 500 series electric scooters. Or any other scooter, mini bike or go-kart using 450W or 500W motors that looks similar to this one. Should also work with any other brand with similar specs in motor.... Please check connector type and motor size and specs. before buying as replacement.

Please ask us if you need to know any specific dimensions for this motor so you can be sure it will work for you.

___________________________________________________________________________________________________________________


We also sell other electric scooter parts and mini Bikes

Most orders ship same day from our warehouse

Warranty: 12 months from purchase date. We will only replace motors that do not work out of the box.  We test all motors before shipping. We will not replace burnt out motors.
