Alfa Wheels

650W 36V ZXF Gear motor+controller+keylock+Charger+Digital Throttle

Code: Mot-ZY1020ZXF-650-36+Cont_XYD+KeyLock+Char+Th_Blue
Add Your Review
$240.59
In Stock
Category: Accessories - Throttles / Pedals, Chargers - 36 Volt, Motors Geared - 36 Volt, Scooter, eBike, eATV Go-Kart - Chargers, Scooter, eBike, eATV Go-Kart - Controllers, Scooter, eBike, eATV Go-Kart - Motors Geared

  • UP TO 1 BUSINESS DAY DELIVERY

  • TOP RATED SELLER IN EBAY

  • 1 YEAR WARRANTY ON SELECT PRODUCTS

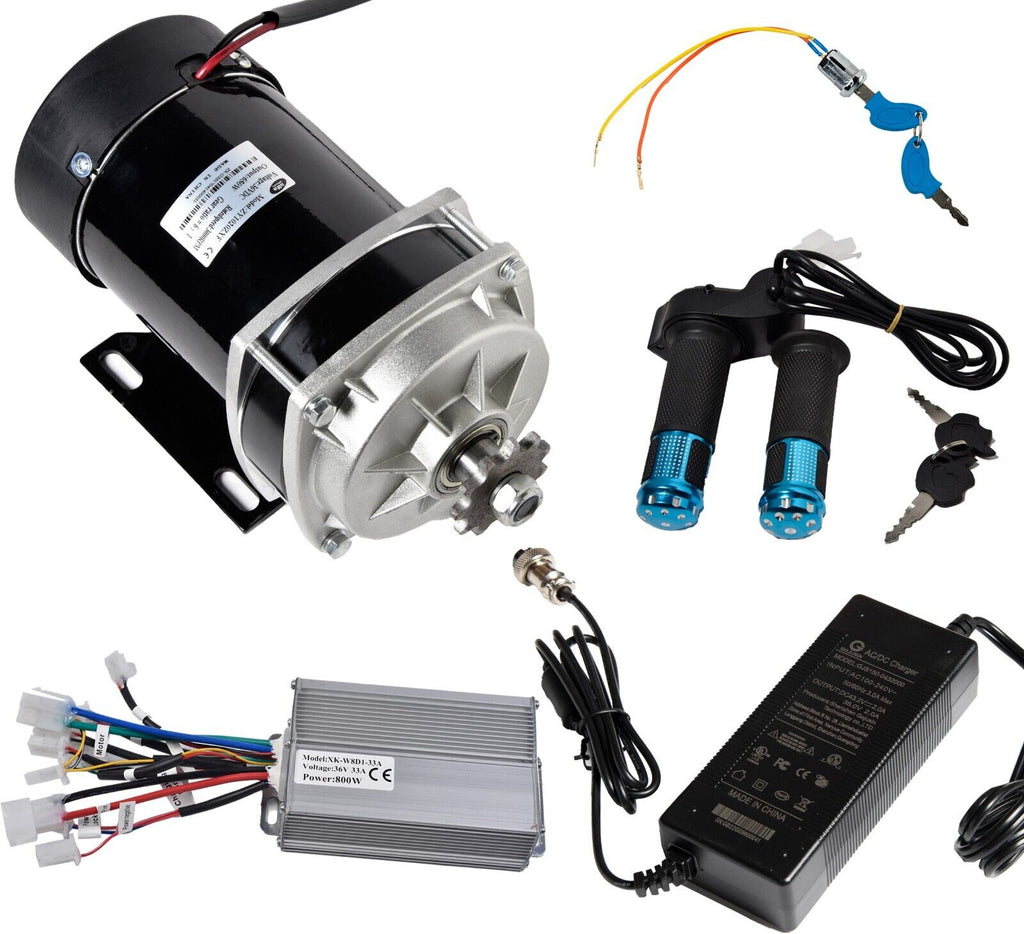

ZY1020ZXF motor, 6:1 reduction gear, 650 Watt 36Volt DC MOTOR
+
800W SPEED CONTROLLER
+
Key Lock (for on/off function)
+
Digital Throttle
+
36V Charger compatible with controller


US SELLER, FAST SHIPPING
Brand new with warranty.

-  ZY1020 type motor for electric scooter, control box and throttle can be used for mini bike quad and Go-Kart. Or do it yourself enthusiasts. Wiring diagrams available at request when shipping.


Motor Specifications:

- 36 Volt DC 650 Watt
- Permanent Magnet DC Brush Motor
- Reversible by changing polarity
- Direct Drive (No Free Spooling), 6:1 reduction ratio.
- Suitable for Forward and Reverse Operations
- Base Mount Model
- Chain drive 11 teeth sprocket #420 chain 1/2" (0.5in) pitch (12.7mm) (this sprocket is thicker/stronger than std. bicycle chain)
- Not Compatible with standard bicycle chain

ZY1020ZXF Gear Motor,  6:1 reduction ratio - Performance data

 MOTOR
Shaft
  NO LOAD
At Rated Load
No Load At Rated Load
CURRENT Amp  SPEED  rpm TORQUE N.m Torque ft.lbf SPEED rpm POWER Watt Power HP CURRENT Amp
SPEED rpm TORQUE N.m Torque ft.lbf SPEED rpm
500W 24V 2.5 3300 1.59 1.2 3000 500 0.67 26.7
550 9.5 7.1 500
650W 36V 2.2 3750 1.94 1.4 3300 650 0.87 24.7
625 11.6 8.6 550
800W 36V 2.5 3750 2.39 1.8 3200 800 1.07 30.4
625 14.3 10.6 533
1000W 48V 2 3600 3.18 2.4 3000 1000 1.34 26.7
600 19.1 14.1


___________________________________________________________________________________________________________________
___________________________________________________________________________________________________________________

Controller Specifications:

100% Tested before shipping

Speed controller for DC Motor, up to 1000W, 36 Volts . This can be used for any other wattage lower than 800W for e-scooters, e-bike, e-ATV, but with risk of burning out the motor.

This controller may be used for replacement of most Razor, X-treme and other kinds of electric scooters, E-bikes, or E-ATVs. Check that voltage is compatible, motor is of same or less watts and for similarity in size, shape and color.


Dimension: aprox 5" x 3" x 2"
Weight: 1.1 Lb
Brand: XYD
Model: XK-8D1-33
Max Power: 1150W

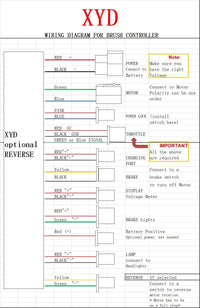

This speed controller features functions and connection terminals for:
Required:
- Battery: Connect to 36 volts (will not work with less than 36V)
- Motor: Use with Brushed Motor
- Throttle (use with compatible variable speed controller). Always match red and black cables.
- Power Lock / on-off switch (use with a simple switch to turn on the controller)

Optional functions:
- 2 Brake ports (will shut off motor)  - Use with micro switch fitter to brake handle or pedal
- Battery Voltage Display - Use with voltage indicator
- Headlight
- Charger - Verify polarity before connecting



WARRANTY:
6 months: Item must be as new, with no sign of short circuit, drop or abuse.
___________________________________________________________________________________________________________________
___________________________________________________________________________________________________________________

Throttle Specifications:

Variable speed, Digital voltage Indicator with Lock Switch
Specification:

  • Brand new and high quality

  • Material: Rubber, Aluminum

  • Size: Approx. 115 x 33mm

  • Cable Length: about 1m

  • Yellow wire: power +（24v 36v 48v ）

  • red wire: +5v

  • green wire: signal

  • black wire: -

  • blue wire, white wire: I/O button（such as on/ off function, light，horn）

  • Fit for 22.2mm diameter Handlebar

  • Suitable for 24/36/48/60/72V E-bike



Package included:

  • 2 x EBike Throttle Grip With Wire

  • 2 x Keys

Note:

  • Please do not contact wrong wire

  • Please allow 1-3mm errors due to manual measurement


Throttle

Controller

Description

Red

connects to

Red

Voltage 5 to 0 Volts

Black

connects to

Black or Yellow

Ground

White

connects to

Green, Blue or White

Speed Adjusting Signal (0 to 5 Volts)

Green

connects to

Red

Controller's Lock or Anti-theft cable

Yellow

connects to

Black or Orange

Controller's Lock or Anti-theft cable

___________________________________________________________________________________________________________________

Key Lock Switch (on/off switch)


Brand new with warranty.
Shipped from the USA.

INCLUDED: 1 switch, 2 keys

Universal switch. Will cut or let electric charge pass



Specifications:

- Brand new

- Electric Bike scooter on / off switch (to be used with speed controllers)

- Compatible with 24v/36v/48v E-scooters (using 2 wires on the speed controller's 'lock').

- Cable length is approximately 4 inches



We also sell other electric scooter parts and mini Bikes


Most orders ship same day from our warehouse


___________________________________________________________________________________________________________________

Battery Charger
36 Volt 2 amp High End
with a 3 prone connector
It is compatible with many brands of electric scooters such as Razor, X-treme
and others.


Features:
- 36V rating (it actually produces 41V)
- 2 amp charging
- Will change LED color once change is finished
- 2 Amps rating




Brand new with warranty.
