Model: 1020ZXFDC BrushBYW800V36S420G=YCDC BrushRYCKYBCC

Current Type: DC

MPN: 1020ZXFDC BrushBYW800V36S420G=YCDC BrushRYCTKYBCC

Rated Load (HP): 1

Controller with Reverse: Y

Brand: Alfa Wheels

Nominal Rated Input Voltage: 36 V

KEyLock included?: Switch in Throttle

Wattage: 800

Voltage: 36

Gear: Y

Motor Model: 1020ZXF

Type: DC Brush

Bottom Base: Y

Sprocket type: 420

Controller type (if included): DC Brush

UPC: 3183884122222

US SELLER, FAST SHIPPING

BRAND NEW

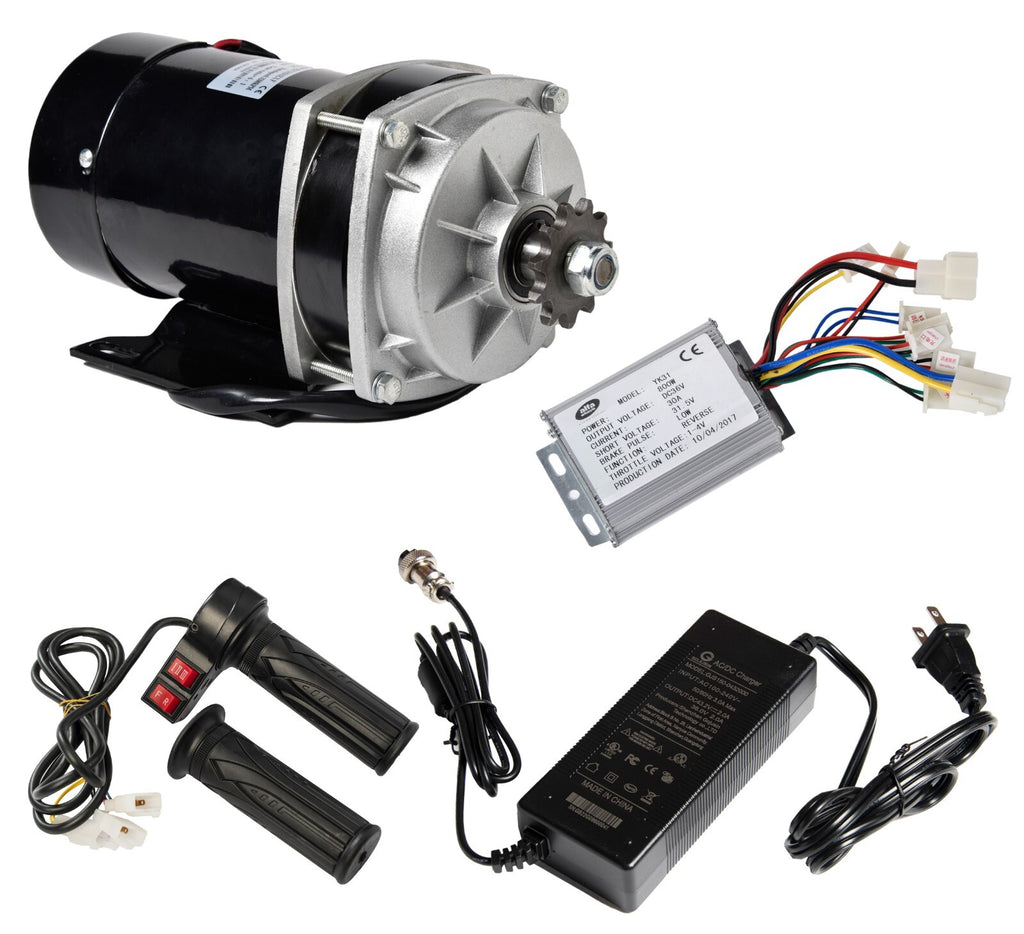

ZY1020ZXF motor for electric ATV, QUAD, TRIKE, GO-KART or DIY with accessories

36 Volt 800 Watt GEAR REDUCTION MOTOR (BRUSH)
+
800W 36V SPEED CONTROLLER with Reverse Function
+
Charger
+
Hand Throttle (compatible with the SPEED CONTROLLER) with Reverse & cruise control switch

Specifications:
- 36 Volt DC 800 Watt
- Permanent Magnet DC Brush Motor
- Reversible by changing polarity
- Direct Drive (No Free Spooling)
- Suitable for Forward and Reverse Operations
- Base Mount Model
- Chain drive 11 teeth sprocket #420 chain 1/2" (0.5in) pitch (12.7mm) (this sprocket is thicker/stronger than std. bicycle chain)
- Not Compatible with standard bicycle chain

ZY1020ZXF Gear Motor,  6:1 reduction ratio - Performance data

MOTOR
Shaft
  NO LOAD
At Rated Load
No Load At Rated Load
CURRENT Amp  SPEED  rpm TORQUE N.m Torque ft.lbf SPEED rpm POWER Watt Power HP CURRENT Amp
SPEED rpm TORQUE N.m Torque ft.lbf SPEED rpm
500W 24V 2.5 3300 1.59 1.2 3000 500 0.67 26.7
550 9.5 7.1 500
650W 36V 2.2 3750 1.94 1.4 3300 650 0.87 24.7
625 11.6 8.6 550
800W 36V 2.5 3750 2.39 1.8 3200 800 1.07 30.4
625 14.3 10.6 533
1000W 48V 2 3600 3.18 2.4 3000 1000 1.34 26.7
600 19.1 14.1 500

Dimensions:
   See dimensions in pictures.


Note: This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires.



This motor is recommended for heavy personal vehicles such as ATVs, Go-Karts, Trikes, Quads, DIY applications.
Specially good for DIY enthusiasts as it generates high toque and is compatible with #420 chains.

Please check connector type and motor size and specs. before buying as replacement.

Please ask us if you need to know any specific dimensions for this motor so you can be sure it will work for you.

___________________________________________________________________________________________________________________

Throttle Specifications:

Throttle
red = positive (+) 5V
black = GND (-)
white = (speed) signal

F-R switch is a (NO-normally off) rocker type switch
yellow = (F) forward gear
(when switch is in the (F) position the switch is off (not making contact)
brown = (R) reverse gear
(when switch is in the (R) position the switch is on (making contact)

3 Speed switch (Switch will connect either 2 cables from the available 3 at any time)
Freely test with your controller to obtain the desired result.
NOTE: This is for controllers that have a 3 cable input for 3 speed control
NOTE: This can also be used as a switch for lights, horn, signal, etc

* Alternate uses
The F-R switch could instead be used as an On/Off switch (to control the speed controller on vehicles without a reverse function) When in the (F) position the speed controller would be off & when (switched) to the (R) position the speed controller would be On. (energized)
…& the Cruise control button could be used for a horn.


___________________________________________________________________________________________________________________

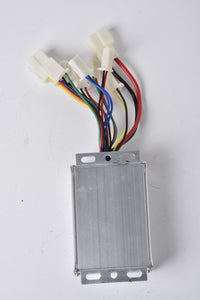

Control box (SPEED CONTROLLER with Reverse Function) specifications:
Dimension: aprox 3.25" x 2.5" x 1.5"
Weight: 9 OZ
Brand: Yiyun
Model: YK31C


This SPEED CONTROLLER with Reverse Function features connection terminals for:
- Battery
- Motor
- Charger
- Lock / on-off switch
- Reverse
- Brake (will shut off motor)
- Battery charge indicator
- Tail lamp
- Throttle

___________________________________________________________________________________________________________________
___________________________
Charger Specifications:


Features:
- 36V rating (it actually produces 41V)
- 2 amp charging
- Will change LED color once change is finished
- 2 Amps rating
________________________________________________________________________________________
