Alfa Wheels

500W 24V ZXF Gear motor+Reverse controller+keylock+Throttle 3 speed

Code: Mot-ZY1020ZXF-500-24+Cont-Rev+Key+Thr-Rev
Add Your Review
500W 24V ZXF Gear motor+Reverse controller+keylock+Throttle 3 speed 500W 24V ZXF Gear motor+Reverse controller+keylock+Throttle 3 speed 500W 24V ZXF Gear motor+Reverse controller+keylock+Throttle 3 speed 500W 24V ZXF Gear motor+Reverse controller+keylock+Throttle 3 speed 500W 24V ZXF Gear motor+Reverse controller+keylock+Throttle 3 speed 500W 24V ZXF Gear motor+Reverse controller+keylock+Throttle 3 speed 500W 24V ZXF Gear motor+Reverse controller+keylock+Throttle 3 speed 500W 24V ZXF Gear motor+Reverse controller+keylock+Throttle 3 speed 500W 24V ZXF Gear motor+Reverse controller+keylock+Throttle 3 speed 500W 24V ZXF Gear motor+Reverse controller+keylock+Throttle 3 speed 500W 24V ZXF Gear motor+Reverse controller+keylock+Throttle 3 speed 500W 24V ZXF Gear motor+Reverse controller+keylock+Throttle 3 speed
500W 24V ZXF Gear motor+Reverse controller+keylock+Throttle 3 speed
500W 24V ZXF Gear motor+Reverse controller+keylock+Throttle 3 speed 500W 24V ZXF Gear motor+Reverse controller+keylock+Throttle 3 speed 500W 24V ZXF Gear motor+Reverse controller+keylock+Throttle 3 speed 500W 24V ZXF Gear motor+Reverse controller+keylock+Throttle 3 speed 500W 24V ZXF Gear motor+Reverse controller+keylock+Throttle 3 speed 500W 24V ZXF Gear motor+Reverse controller+keylock+Throttle 3 speed 500W 24V ZXF Gear motor+Reverse controller+keylock+Throttle 3 speed 500W 24V ZXF Gear motor+Reverse controller+keylock+Throttle 3 speed 500W 24V ZXF Gear motor+Reverse controller+keylock+Throttle 3 speed 500W 24V ZXF Gear motor+Reverse controller+keylock+Throttle 3 speed 500W 24V ZXF Gear motor+Reverse controller+keylock+Throttle 3 speed 500W 24V ZXF Gear motor+Reverse controller+keylock+Throttle 3 speed

Country of Origin: China

Bottom Base: Y

MPN: 1020ZXFBYW500V24S#410G=YCDC BrushRYCTTwist NCH

Motor Model: 1020ZXF

Voltage: 24

Charger included?: N

Suitable For: Electric Go Kart

Size: Gear Reduction

Model: 1020ZXFBYW500V24S#410G=YCDC BrushRYCTTwistNoCH

Wattage: 500

Sprocket type: #410

Gear: Y

Brand: Alfa Wheels

Controller with Reverse: Y

Color: Multi-Color

Controller type (if included): DC Brush

KEyLock included?: Y

Type: DC Motor

UPC: 0784956420722

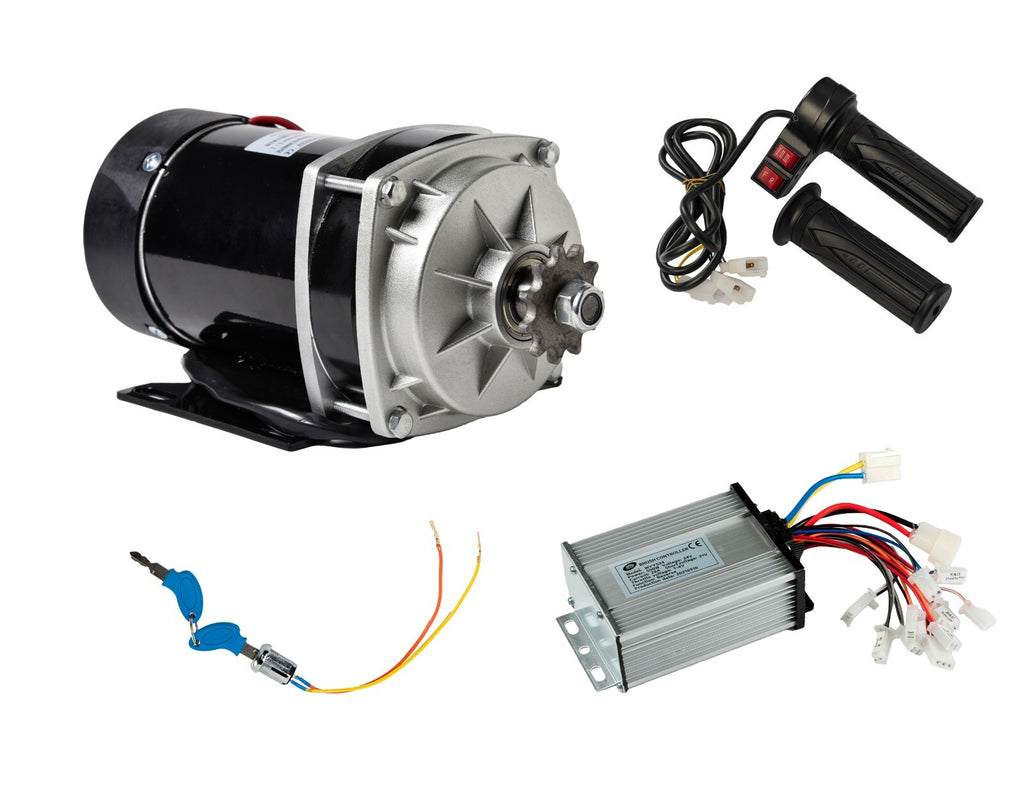

ZY1020ZXF Motor, 6:1 reduction Gear, 500 Watt 24 Volt DC MOTOR
+
500W 24V SPEED CONTROLLER with REVERSE Function
+
Key Lock (for on/off function)
+
Throttle with Reverse Switch


  • US SELLER>>FAST SHIPPING
Brand new with warranty.

-  ZY1020 type motor for electric scooter, control box and throttle can be used for mini bike quad and Go-Kart. Or do it yourself enthusiasts. Wiring diagrams available at request when shipping.


Specs:
- 24 Volt DC 500 Watt
- Permanent Magnet DC Brush Motor
- Reversible by changing polarity
- Direct Drive (No Free Spooling), 6:1 reduction ratio.
- Suitable for Forward and Reverse Operations
- Base Mount Model
- Chain drive 11 teeth sprocket #420 chain 1/2" (0.5in) pitch (12.7mm) (this sprocket is thicker/stronger than std. bicycle chain)
- Not Compatible with standard bicycle chain

ZY1020ZXF Gear Motor,  6:1 reduction ratio - Performance data

 MOTOR
Shaft
  NO LOAD
At Rated Load
No Load At Rated Load
CURRENT Amp  SPEED  rpm TORQUE N.m Torque ft.lbf SPEED rpm POWER Watt Power HP CURRENT Amp
SPEED rpm TORQUE N.m Torque ft.lbf SPEED rpm
500W 24V 2.5 3300 1.59 1.2 3000 500 0.67 26.7
550 9.5 7.1 500
650W 36V 2.2 3750 1.94 1.4 3300 650 0.87 24.7
625 11.6 8.6 550
800W 36V 2.5 3750 2.39 1.8 3200 800 1.07 30.4
625 14.3 10.6 533
1000W 48V 2 3600 3.18 2.4 3000 1000 1.34 26.7
600 19.1 14.1


___________________________________________________________________________________________________________________

Control box (speed controller) specs:

Dimension: aprox 4" x 3" x 1.75"
Weight: 15 OZ
Brand: WYYS
Model: WYYS24

Nominal Power: 500W
Nominal Current 28A
Max Voltage: 27V
Cut out voltage: 21V


This speed controller features connection terminals for:
- Battery
- Motor
- Charger
- Lock / on-off switch
- Brake (will shut off motor)
- Brake Light
- Battery charge indicator
- Tail lamp
- Throttle
- Reverse
- 3 Speed control (speed limiter)


WARRANTY:      6 months

___________________________________________________________________________________________________________________

Throttle Specifications:

Throttle
red = positive (+) 5V
black = GND (-)
white = (speed) signal

F-R switch is a (NO-normally off) rocker type switch
yellow = (F) forward gear
(when switch is in the (F) position the switch is off (not making contact)
brown = (R) reverse gear
(when switch is in the (R) position the switch is on (making contact)

3 Speed switch (Switch will connect either 2 cables from the available 3 at any time)
Freely test with your controller to obtain the desired result.
NOTE: This is for controllers that have a 3 cable input for 3 speed control
NOTE: This can also be used as a switch for lights, horn, signal, etc

* Alternate uses
The F-R switch could instead be used as an On/Off switch (to control the speed controller on vehicles without a reverse function) When in the (F) position the speed controller would be off & when (switched) to the (R) position the speed controller would be On. (energized)
…& the Cruise control button could be used for a horn.
