Motor Golf Cart Motor Mobility Scooter Dual Side ZY7712Z Unite 180W 12V 140 RPM
-
UP TO 1 BUSINESS DAY DELIVERY
-
TOP RATED SELLER IN EBAY
-
1 YEAR WARRANTY ON SELECT PRODUCTS
Item name:
Angular worm gearbox e-motor DC 180W 12V 16 Nm 140rpm 25:1
Brand:
RuiPu Co., Ltd.
Model/type & pictures:
7712Z / RP-Q-180
|
TYPE |
NO-LOADING |
LOADING |
REDUCE RATIO |
||||
|
CURRENT/A |
SPEED/rpm |
TORQUE/N.m |
SPEED/rpm |
POWER/W |
CURRENT/A |
||
|
150W12V |
1.8 |
3250 |
0.57 |
2500 |
150 |
17.8 |
i=25:1 |
|
150W24V |
1.6 |
3250 |
0.57 |
2500 |
150 |
9.2 |
i=25:1 |
|
180W12V |
1.8 |
3500 |
0.63 |
2750 |
180 |
23.0 |
i=25:1 |
|
180W12V |
1.6 |
3500 |
0.63 |
2750 |
180 |
11.5 |
i=25:1 |
|
200W12V |
1.6 |
3750 |
0.63 |
3000 |
200 |
23.8 |
i=25:1 |
|
200W24V |
1.8 |
3750 |
0.64 |
3000 |
200 |
11.9 |
i=25:1 |
|
Performance data: | |
power output |
180W (max. 240W); 12V |
Nennstrom (=belastet) |
~23 A (peak ~50A) |
current without load |
<= 1,9 A |
rated speed (rpm) |
110 +/- 10 % |
unrated speed (rpm) |
140 +/- 10 % |
rated torque / max. |
16 Nm / max. 25 Nm +/- 10 % |
shaft |
hollow shaft, full-length, opening both-sides, pin bore, |
transmission ratio |
25:1 |
efficiency |
>=75% |
weight |
2,7 KGs |

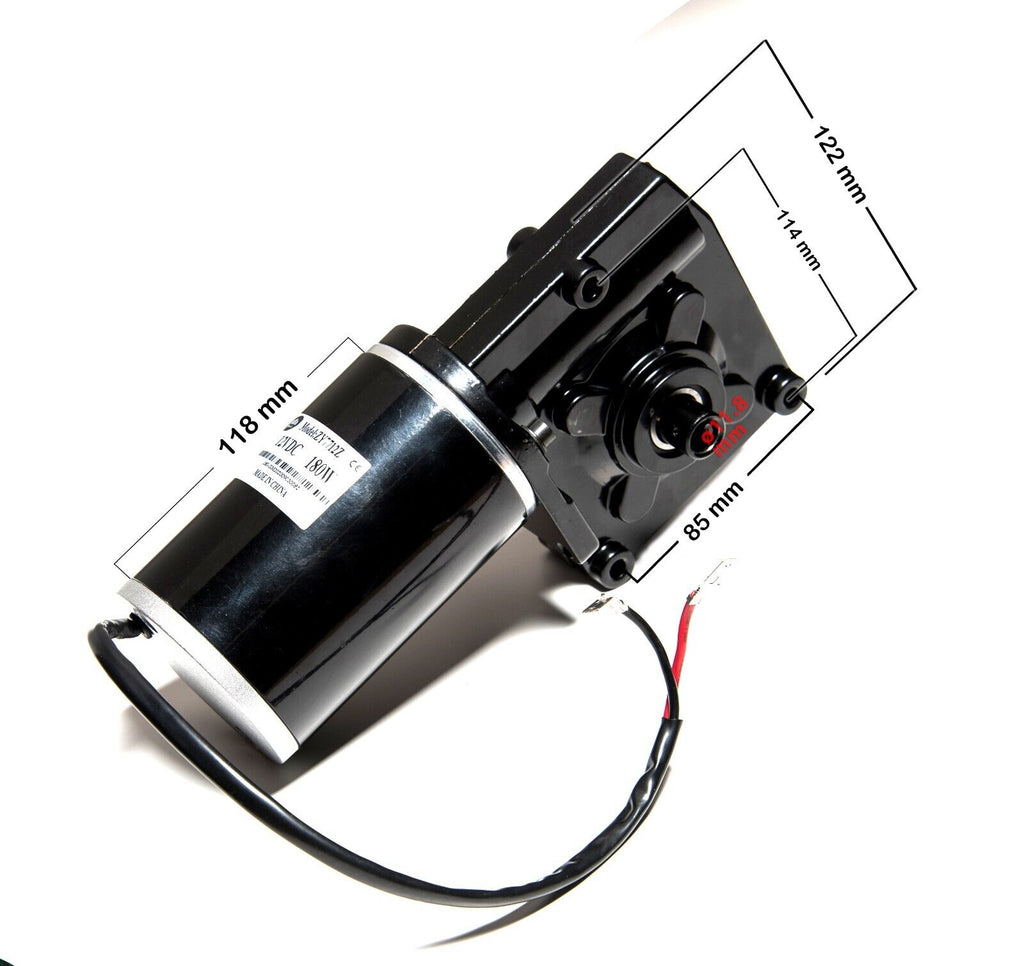

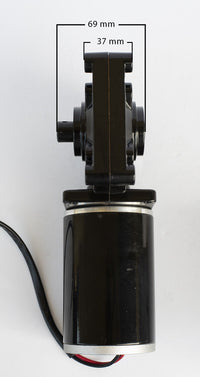

External dimensions: |
|
length |
23,6 cm |
motor diameter |
7,7 cm |
width motor+gearbox |
13,5 cm |
Features:
-carbon brushes, 2pcs
-two connectors/cable only, simple wiring
-ball bearing
-maintenance-free grease lubrication
-Ingress Protection Rating IP–Code: IP33
-CE certified
-both sides turning
-legal warranty: 24 month
Areas of applications:
This worm gear direct current electric motor is suitable e. g. for Golf Cart, Mobility Scooter, machines, industry, model making,
miniature making, theater engineering, stage engineering
Available accessories:
Controller, lead acid batteries
