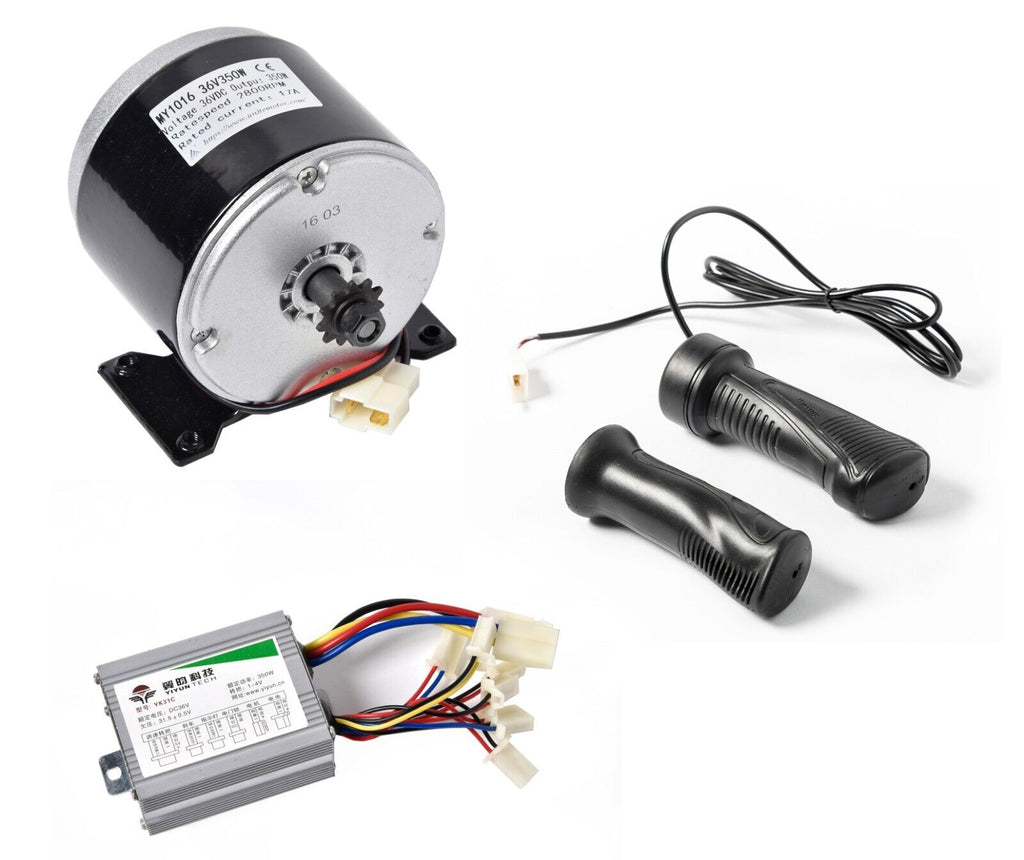

Electric Motor 350W 36V DC scooter Sprocket +speed control +Throttle E300 spare

Code: Mot-MY1016-350-36-Ctrl-Thr
  • UP TO 1 BUSINESS DAY DELIVERY

  • TOP RATED SELLER IN EBAY

  • 1 YEAR WARRANTY ON SELECT PRODUCTS

New MY1016 motor 9T Sprocket
350 Watt rated output,  36 Volt
Rated 17 amp
US SELLER > FAST SHIPPING
True 350W output. 17 amp input. 9T Sprocket

Fits Razor Crazy Cart and Crazy Cart DLX.
Also fits E200, E275, RX200
 for electric scooter, mini bike quad and Go-Kart. It may also work for bicycle.

Motor Specs:

36V DC
- Rated 350 Watt, 17 amps
- Max 2800 RPM
- Chain drive (9 teeth sprocket) #25 chain 6.35 pitch
- Type of motor: DC, Brush
- Reversible
- 12 gauge leads
- Permanent Magnet

Dimensions:
   - Diameter: 4"
   - Length aprox. (no shaft): 3"
   - Length aprox (with shaft): 4"

Control Specs:


Dimension: aprox 3.25" x 2.5" x 1.5"
Weight: 9 OZ
Brand: Yiyun
Model: YK31C

- Peak current: 20A
- Max Voltage: 40.5V
- Cut off voltage: 32V


This speed controller features connection terminals for:
- Battery
- Motor
- Charger
- Lock / on-off switch
- Brake (will shut off motor)
- Battery charge indicator
- Tail lamp
- Throttle

Twist Throttle (to be used with speed controller)


Brand new with warranty.
Shipped from the USA.

MOTOR NOT INCLUDED


INCLUDED: 1 Throttle, 1 extra grip

Universal Black Electric Scooter Bike Twist Throttle Grip 3Wire 12V 24V 36V 48V



Specifications:

- Brand new

Electric Bike scooter twist throttle accelerator

Compatible with 24v/36v/48v E-scooters (using 3 wires on the speed controller).

Fits standard 7/8 inches(22.2mm)  handle bars

Cable length is approximately 40 inches

- Includes 1 grip for the other side of the handle

Wiring instructions:

Throttle

Controller

Description

Red

connects to

Red

Voltage 4.3 to 5.0 Volts

Black

connects to

Black or Yellow

Ground

Green

connects to

Green, Blue or White

Speed Adjusting Signal (0 to 5 Volts)



This motor should work with some Xtreme or Razor electric scooters or DIY, mini bike or go-kart using a 350W motor. Should also work with any other brand with similar specs in motor
Please check connector type and motor size and specs. before buying as replacement.

Please ask us if you need to know any specific dimensions for this motor so you can be sure it will work for you.

Most orders ship same day from our warehouse

Warranty: 12 Months purchase date. We will only replace motors that do not work out of the box.  We test all motors before shipping. We will not replace burnt out motors.
