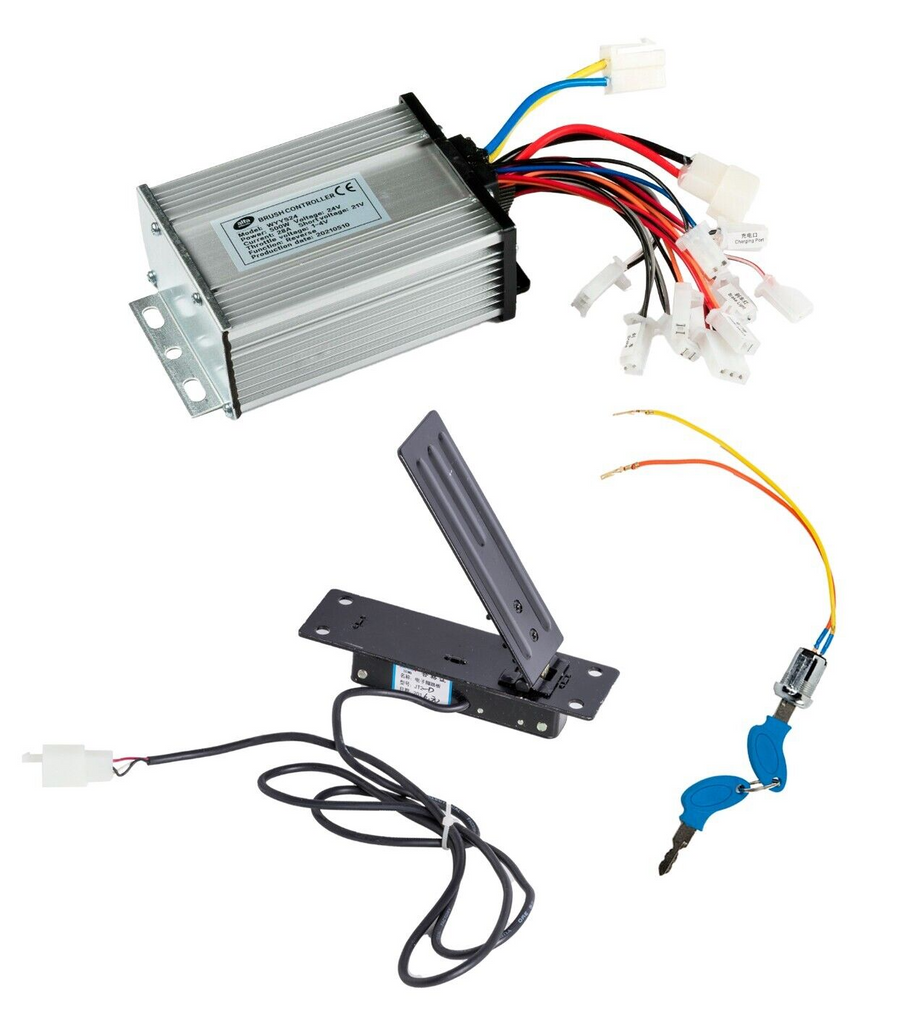

500 Watt 24 Volt SPEED CONTROLLER WITH Reverse Function
+
Foot Pedal Throttle
+
Key Lock Switch (use for reverse function or to turn on/off controller)





Brand new with warranty.

Control box and throttle can be used for mini bike quad and Go-Kart. Reverse function makes it very practical. Great for do it yourself enthusiasts. Wiring diagrams included when shipping.



Controller Specifications

Dimension: aprox 4" x 3" x 1.75"
Weight: 15 OZ
Brand: WYYS
Model: WYYS24

Nominal Power: 500W
Nominal Current 28A
Max Voltage: 27V
Cut out voltage: 21V


This speed controller features connection terminals for:
- Battery
- Motor
- Charger
- Lock / on-off switch
- Brake (will shut off motor)
- Brake Light
- Battery charge indicator
- Tail lamp
- Throttle
- Reverse
- 3 Speed control (speed limiter)


WARRANTY:      6 months

_____________________________________________________________________________



Foot Pedal Throttle Specifications:


Universal Black Electric Scooter Bike Foot Throttle 3Wire 12V 24V 36V 48V



Specifications:

- Brand new

- Electric Bike scooter Foot Throttle accelerator

- Compatible with 24v/36v/48v E-scooters (using 3 wires on the speed controller).

- Cable length is approximately 40 inches

- Wiring instructions:

Throttle

Controller

Description

Red

connects to

Red

Voltage 4.3 to 5.0 Volts

Black

connects to

Black or Yellow

Ground

Green

connects to

Green, Blue or White

Speed Adjusting Signal (0 to 5 Volts)





We also sell other electric scooter parts and mini Bikes

Most orders ship same day from our warehouse

Warranty: 12 Months from purchase date. We will only replace motors that do not work out of the box.  We test all motors before shipping. We will not replace burnt out motors.
