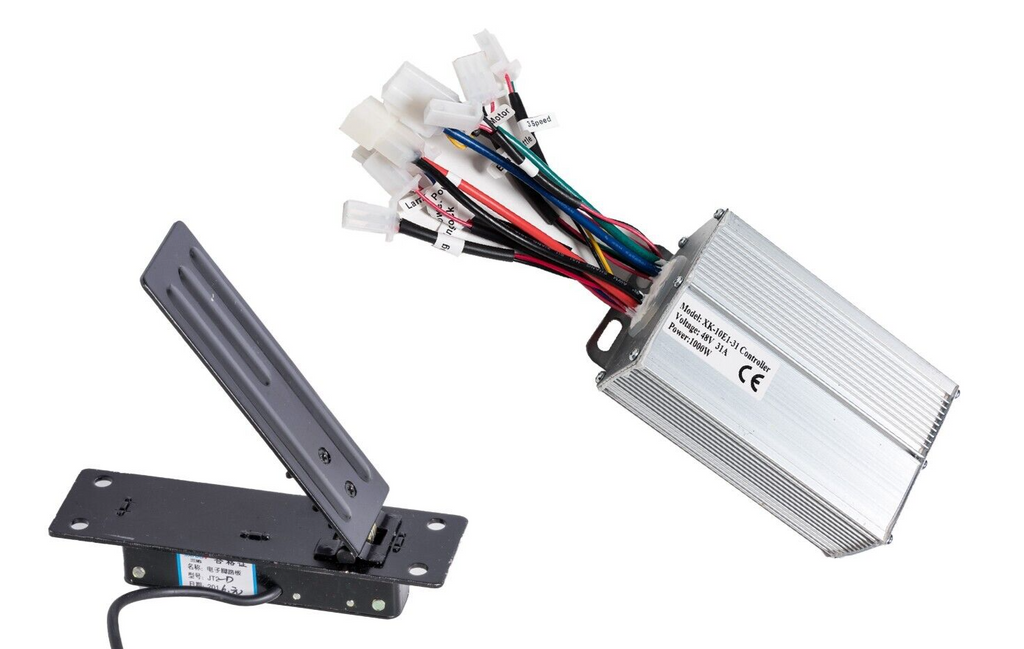

Variable Speed
MOTOR CONTROLLER 48 Volts 31 amps
With Reverse function
Use for 1000W Watt 48 Volt Motors
+
Foot Throtle

BRAND NEW AND WITH WARRANTY
100% Tested before shipping
US SELLER, FAST SHIPPING



Controller Specifications:

Speed controller for DC Motor, up to 1000W, 48 Volts . This can be used for any other wattage lower than 1000W for e-scooters, e-bike, e-ATV, but with risk of burning out the motor.

This controller may be used for replacement of most Razor, X-treme and other kinds of electric scooters, E-bikes, or E-ATVs. Check that voltage is compatible, motor is of same or less watts and for similarity in size, shape and color.



Dimension: aprox 7" x 4" x 3"
Weight: 2 Lb
Brand: XYD
Model: XK-10E1F-31
Max Power: 1488W


This speed controller features functions and connection terminals for:
Required:
- Battery: Connect to 36 volts (will not work with less than 36V)
- Motor: Use with Brushed Motor
- Throttle (use with compatible variable speed controller). Always match red and black cables.
- Power Lock / on-off switch (use with a simple switch to turn on the controller)

Optional functions:
- Brake port (will shut off motor)  - Use with micro switch fitter to brake handle or pedal
- Battery Voltage Display - Use with voltage indicator
- Headlight
- Charger - Verify polarity before connecting



WARRANTY:
6 months: Item must be as new, with no sign of short circuit, drop or abuse.
___________________________________________________________________________________________________________________
___________________________________________________________________________________________________________________

Foot Pedal Throttle Specifications:


Universal Black Electric Scooter Bike Foot Throttle 3Wire 12V 24V 36V 48V



Specifications:

- Brand new

- Electric Bike scooter Foot Throttle accelerator

- Compatible with 24v/36v/48v E-scooters (using 3 wires on the speed controller).

- Cable length is approximately 40 inches

- Wiring instructions:

Throttle

Controller

Description

Red

connects to

Red

Voltage 4.3 to 5.0 Volts

Black

connects to

Black or Yellow

Ground

Green

connects to

Green, Blue or White

Speed Adjusting Signal (0 to 5 Volts)
