24 Volt Electric Speed Control box kit w Batteries, charger & Twist Throttle

Code: Control 250-charger 24v-throtle-batteries 12-8ah

Add Your Review

24 Volt Electric Speed Control box kit w Batteries, charger & Twist Throttle

$145.99

In Stock

Quantity

Category: Accessories - Batteries, Accessories - Throttles / Pedals, Scooter, eBike, eATV Go-Kart, Scooter, eBike, eATV Go-Kart - Chargers

UP TO 1 BUSINESS DAY DELIVERY
TOP RATED SELLER IN EBAY
1 YEAR WARRANTY ON SELECT PRODUCTS

Description
Shipping & Returns

Motor Model: ZY1016

Color: Multi-Color

Wattage: 250

Bottom Base: N

MPN: ZY1016DC BrushBNW250V24S35G=NCDC BrushRNCTFootKBC

Suitable For: Electric Go Kart

Gear: N

Brand: Unite

Controller type (if included): DC Brush

Sprocket type: #25

Type: DC Brush

Voltage: 24

Model: ZY1016DC BrushBNW250V24S35G=NCDC BrushRNCTFootKBC

Controller with Reverse: N

UPC: 743127729385

US SELLER / FAST SHIPPING

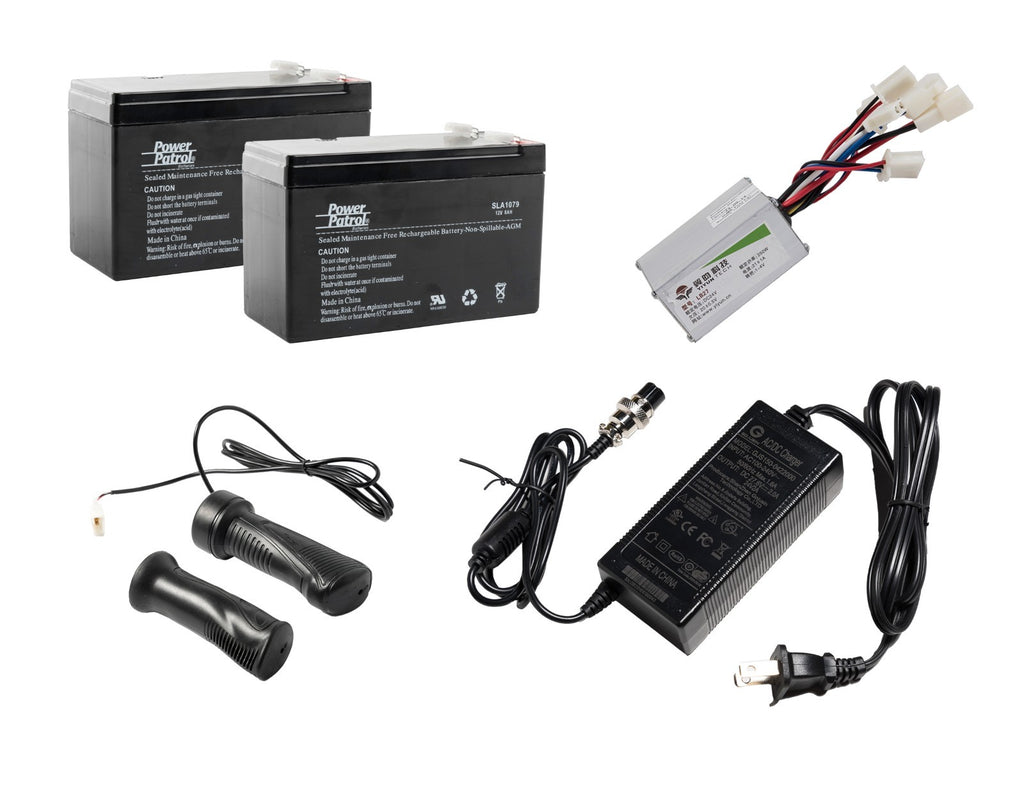

2 (two) 12 Volts 8 AH Batteries

250W Speed Controller

Twist Throttle

24 Volt 2 amp High End

Battery charger with a 3 prone connector

For electric scooter, mini bike quad and Go-Kart. It may also work for bicycle.

______________________________________________________________________

Batteries Specifications:

The Power Patrol SLA109X battery utilizes Absorbent Glass Mat (AGM) technology for superior performance. Valve regulated, spill proof construction allows safe operation in any position. Common uses for Sealed Lead Acid (SLA) Batteries include: vehicular electronics, UPS and computer systems, wheelchairs, scooters, industrial and medical equipment and more

Specifications:

Product ID:	SLA109X
Amp Hours:	7.0
Voltage:	12
Termination:	.250" FASTON SPADES
Chemistry:	SEALED LEAD ACID
Weight (lbs):	7.06
Width (in):	2.5600
Length (in):	5.95
Height (in):	4.37

______________________________________________________________________

Speed Controller Specifications:

250W Brush controller

Dimension: aprox 3.25" x 2.5" x 1.5"

Weight: 9 OZ

Brand: Yiyun

Model: YK31C

This speed controller features connection terminals for:

- Battery

- Motor

- Charger

- Lock / on-off switch

- Brake (will shut off motor)

- Battery charge indicator

- Tail lamp

- Throttle

______________________________________________________________________

Twist Throttle (to be used with speed controller)

INCLUDED: 1 Throttle, 1 extra grip

Universal Black Electric Scooter Bike Twist Throttle Grip 3Wire 12V 24V 36V 48V

Specifications:

- Brand new

- Electric Bike scooter twist throttle accelerator

- Compatible with 24v/36v/48v E-scooters (using 3 wires on the speed controller).

- Fits standard 7/8 inches(22.2mm) handle bars

- Cable length is approximately 40 inches

- Includes 1 grip for the other side of the handle

- Wiring instructions:

Throttle		Controller	Description
Red	connects to	Red	Voltage 4.3 to 5.0 Volts
Black	connects to	Black or Yellow	Ground
Green	connects to	Green, Blue or White	Speed Adjusting Signal (0 to 5 Volts)

______________________________________________________________________

24 Volt 2 amp High End

Battery charger with a 3 prone connector

It is compatible with many brands of electric scooters such as Razor, X-treme and others.

Features:

- 24V rating (it actually produces 27V)

- 2 amp charging

- Will change LED color once change is finished

- 2 Amps rating

We also sell other electric scooter parts and mini Bikes

Most orders ship same day from our warehouse

Warranty: 6 Months from purchase date.
